Asbestos Air Monitoring & Clearance: Complete Guide

A general contractor in Manhattan called UNYSE at 7 a.m. on a Tuesday with a crisis: his abatement crew had spent two days removing asbestos pipe insulation in a commercial building, but the project manager forgot to schedule air monitoring. OSHA showed up for a surprise inspection that morning and issued a stop-work order on the spot. The contractor faced $15,000 in fines, a week-long project delay, and the possibility of criminal penalties for exposing workers to airborne asbestos without documentation. According to OSHA’s 2024 enforcement data, air monitoring violations account for over 30% of asbestos-related citations, often because contractors assume visual inspection alone satisfies clearance requirements.

Asbestos air monitoring is the legally mandated process of measuring airborne asbestos fiber concentrations during and after abatement work. Whether you’re protecting workers in real time, verifying final clearance before re-occupancy, or documenting compliance for OSHA and EPA, air monitoring isn’t optional—it’s the difference between a compliant project and a regulatory shutdown. This guide explains OSHA requirements, PCM vs. TEM testing methods, air sampling protocols, pass/fail thresholds, and how UNYSE delivers same-day results that keep your project on track.





What Is Asbestos Air Monitoring and Why Is It Required?

Asbestos air monitoring measures the concentration of airborne asbestos fibers in a defined space using calibrated air sampling pumps, filter cassettes, and laboratory microscopy. Results are expressed in fibers per cubic centimeter (f/cc) and compared against OSHA’s Permissible Exposure Limit (PEL) of 0.1 f/cc for an 8-hour time-weighted average (TWA). Air monitoring serves two critical functions: protecting workers during abatement and verifying clearance after work is complete.

Asbestos becomes dangerous when disturbed. Cutting, sanding, demolishing, or removing asbestos-containing materials (ACM) releases microscopic fibers into the air, where they can be inhaled deep into the lungs. A single exposure to high concentrations or repeated low-level exposure over time can cause asbestosis, lung cancer, and mesothelioma. Air monitoring provides objective, quantifiable evidence that fiber levels remain below hazardous thresholds, protecting everyone from workers to future building occupants.





Real-Time Worker Protection During Abatement

OSHA’s Asbestos Standard for Construction (29 CFR 1926.1101) requires employers to conduct air monitoring whenever employees perform Class I, II, or III asbestos work, or when exposure may exceed the PEL. Personal air monitoring uses small battery-powered pumps clipped to workers’ belts, with sampling cassettes attached near the breathing zone. Area air monitoring places pumps at fixed locations inside and outside the work zone to measure background concentrations and containment effectiveness.

Real-time monitoring allows project managers to adjust work practices immediately if fiber levels spike—adding ventilation, improving containment, or halting work until conditions improve. Without air monitoring, exposure remains invisible, and workers may inhale dangerous concentrations without knowing it. OSHA can issue willful violations (fines up to $156,259 per violation) if air monitoring is skipped or improperly documented. Learn more: https://www.osha.gov/laws-regs/regulations/standardnumber/1926/1926.1101





Post-Abatement Clearance Verification

After abatement is finished, air monitoring shifts from worker protection to clearance verification. Final clearance air testing confirms that the abatement contractor successfully removed or contained ACM and that no residual asbestos fibers remain airborne. Clearance samples are collected using aggressive air sampling techniques—running leaf blowers or fans inside the work area to stir up any remaining dust—then analyzing filters under a microscope to count fibers.

Clearance thresholds are stricter than worker exposure limits. Most jurisdictions require final air concentrations below 0.01 f/cc (using PCM analysis), ten times lower than OSHA’s 8-hour PEL. Passing clearance allows the building owner to remove containment barriers, re-occupy the space, and close out permits. Failed clearance requires re-cleaning, re-testing, and extended project timelines. NYC/NYS guidance: https://www.labor.ny.gov/workerprotection/safetyhealth/asbestos/index.shtm





OSHA and EPA Asbestos Air Monitoring Requirements

Federal and state regulations establish when air monitoring is required, how samples must be collected, and what documentation must be maintained. Contractors and property owners who ignore these rules face civil penalties, stop-work orders, and potential criminal liability if workers or occupants are harmed.

When Air Monitoring Is Legally Mandatory

OSHA mandates air monitoring in the following scenarios:

  • Initial exposure assessment (PEL 0.1 f/cc TWA; Excursion Limit 1.0 f/cc over 30 minutes)

  • Class I operations (TSI/surfacing ACM)

  • Class II operations (non-TSI/surfacing ACM like flooring, roofing, siding)

  • Class III operations (repair/maintenance disturbing ACM)

  • Periodic monitoring during ongoing abatement (frequency based on exposure)

  • Final clearance prior to re-entry


EPA’s Asbestos NESHAP adds notification and monitoring requirements for qualifying demolition/renovation projects: https://www.epa.gov/asbestos/asbestos-laws-and-regulations

NYC and NYS State-Specific Regulations

New York State (NYS DOL Asbestos Control Bureau) adds:

  • Project notification 10 business days prior for ≥260 LF or ≥160 SF ACM

  • Independent air monitoring for ≥10,000 SF projects

  • Final clearance: aggressive PCM results < 0.01 f/cc

  • Record retention: keep air monitoring records for 30 years


NYC DEP enforces Local Law 76/Administrative Code §24-146: project notifications, permit fees, and final clearance reports are required before certificate of completion. Using unlicensed inspectors or skipping air monitoring voids permits.





PCM vs. TEM Asbestos Air Testing: Which Method Do You Need?

Phase Contrast Microscopy (PCM) for Clearance

  • Standard for clearance and OSHA compliance (NIOSH Method 7400)

  • Detects fibers ≥5 µm long, ≥0.25 µm diameter

  • NVLAP/AIHA-LAP accredited labs; 24–48 hour typical TAT; $25–$50/sample

  • Limitation: cannot distinguish asbestos from non-asbestos fibers

  • Method details: https://www.cdc.gov/niosh/docs/2003-154/pdfs/7400.pdf


Transmission Electron Microscopy (TEM) for Disputes

  • Higher sensitivity; identifies asbestos mineral types

  • Used for disputes/ambient studies/AHERA in schools/sensitive facilities

  • 5–10 business day TAT; $150–$300/sample


For most building clearances, PCM is standard; TEM is reserved for low-level detection, identification, or contested results.





Q: What is asbestos air monitoring?

Asbestos air monitoring is the process of collecting air samples during or after asbestos abatement to measure airborne fiber concentrations. Certified industrial hygienists use calibrated air pumps and filters to capture fibers, which are analyzed in an accredited lab. Results are compared against OSHA limits to verify worker safety and post-abatement clearance.





The Asbestos Air Sampling Process: Equipment and Protocols

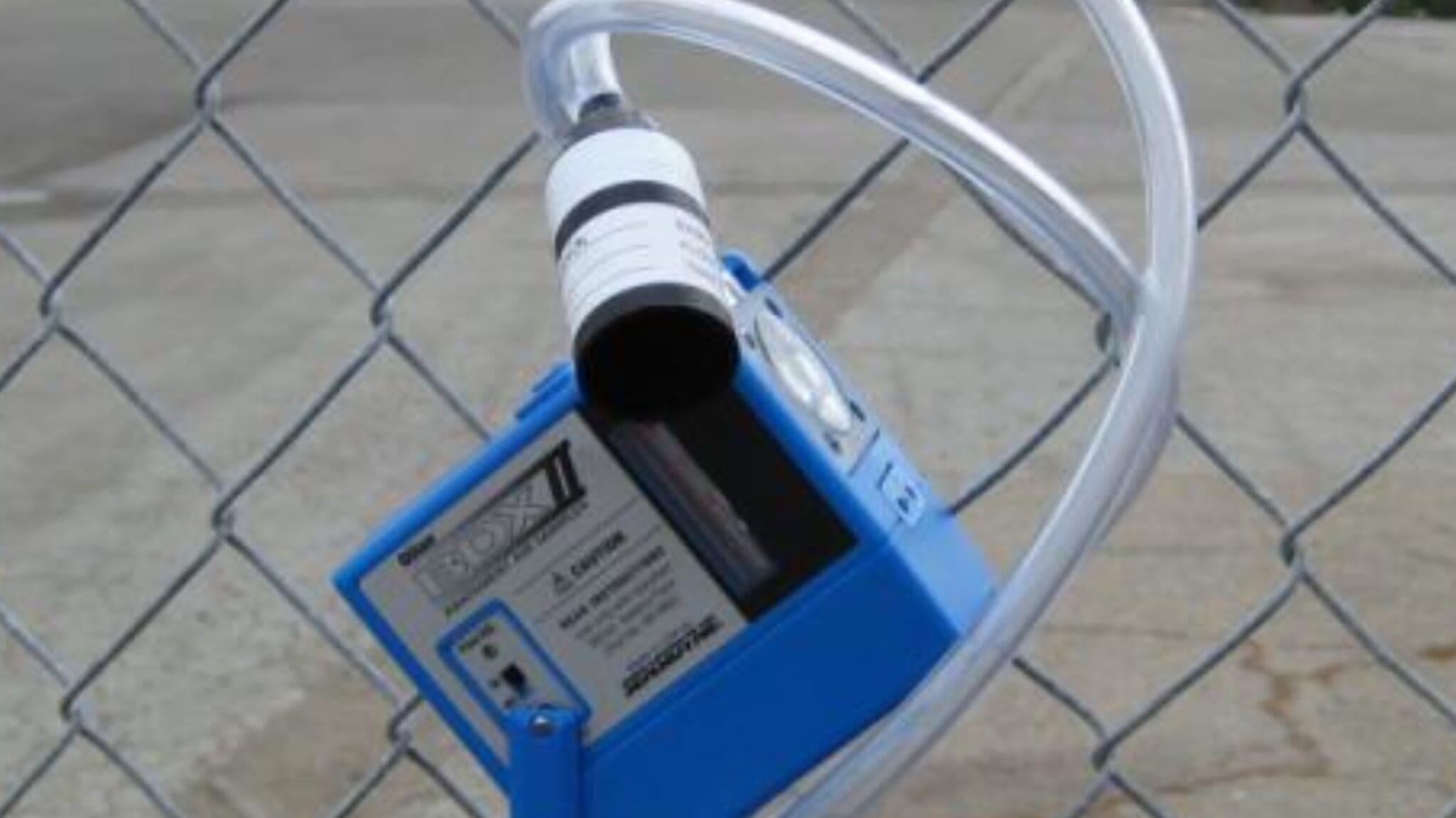

Air Pump Setup, Flow Rates, and Sampling Duration

  • Personal/area pumps with 25 mm MCE filter cassettes

  • Typical flow rate: 1–16 LPM

  • Personal samples: full shift (6–8 hours) for TWA; short-term (15–30 min) for excursion limit

  • Clearance samples: 30 minutes–2 hours (aggressive or passive)

  • Target sample volume for PCM: ~400–3,000 liters


UNYSE uses Gilian, SKC, and other NIOSH-approved pumps, calibrated before/after sampling per NIOSH 7400 and OSHA technical methods.

Aggressive vs. Passive Air Sampling

Passive: no disturbance; quicker but may miss trapped fibers.
Aggressive (standard for NYC/NYS and AHERA):

  1. Seal area/turn off HVAC

  2. Agitate with fans/leaf blowers (5–10 min)

  3. Allow settling (5–10 min)

  4. Run pumps (30–120 min)

  5. Compare to <0.01 f/cc threshold






How to Interpret Asbestos Air Monitoring Results

OSHA PEL and NIOSH Fiber Count Thresholds

  • OSHA PEL: 0.1 f/cc (8-hr TWA)

  • OSHA Excursion Limit: 1.0 f/cc (30 min)

  • Clearance (NYC/NYS typical): <0.01 f/cc (PCM)


Lab reports include analytical sensitivity, counting statistics, blanks, and QC notes. Insufficient volume or high blanks may require re-sampling.

What Happens If Your Project Fails Air Clearance

Common causes: incomplete HEPA cleaning, containment breaches, re-contamination, residual ACM. Required steps:

  1. Re-inspect for debris/ACM

  2. HEPA vacuum and wet wipe all surfaces

  3. Verify containment/negative air integrity

  4. Re-sample for clearance
    UNYSE can expedite re-testing; persistent failures may warrant TEM to pinpoint sources.






Q: When is asbestos air monitoring required?

OSHA requires monitoring when exposure may meet/exceed the PEL, during Class I/II/III work, and for final clearance after abatement. NYC/NYS add triggers based on project size and occupancy type.





Asbestos Air Monitoring Costs and Turnaround Times

Typical Pricing (PCM and TEM)

  • PCM: $25–$50/sample; 24–48 hour TAT


  • TEM: $150–$300/sample; 5–10 day TAT


  • Small clearance sets (3–5 samples): ~$200–$400 lab fees (PCM)


Additional factors:

  • Inspector field time: $150–$300/visit

  • Rush PCM: +$50–$100/sample

  • Equipment rental (if self-collecting, not recommended): $75–$150/day

  • Re-sampling after failed clearance: additional visit + lab fees


Request a quote: https://www.unyse.net/ or call (888) 436-8338.

Same-Day and Rush Reporting

UNYSE provides same-day PCM results when scheduled in advance (morning collection, afternoon delivery to NVLAP lab). We cover NYC (all boroughs), Long Island, Westchester, and the Hudson Valley with flexible scheduling and weekend availability.





Q: How much does asbestos air monitoring cost?

PCM samples are typically $25–$50 each with 24–48 hour turnaround; TEM $150–$300 with 5–10 days. A small abatement project often needs 3–5 PCM clearance samples (~$200–$400 in lab fees). Same-day rush reporting adds $100–$200.





Q: What is the difference between PCM and TEM asbestos testing?

PCM detects larger fibers and is the fast, low-cost standard for clearance; TEM detects smaller fibers and confirms asbestos types, used for disputes or ultra-low detection needs.





How UNYSE Delivers Certified Asbestos Air Monitoring Across NY

NVLAP-Accredited Lab Analysis and Same-Day Results

All UNYSE asbestos air samples are analyzed by NVLAP-accredited labs using NIOSH 7400 (PCM) or EPA TEM protocols. Standard PCM results: 24–48 hours; same-day rush available with morning collection. Reports include fiber concentrations, pass/fail calls, QC, and plain-language summaries suitable for OSHA/EPA/NYC DEP/NYS DOL.

Independent Third-Party Oversight for Compliance

UNYSE is an independent environmental consulting firm—no abatement work or material sales—ensuring objective results that stand up to regulatory review. We provide pre-abatement inspections, HASPs, worker exposure monitoring, and final clearance testing.





Q: What happens if asbestos air monitoring fails clearance?

If clearance samples exceed 0.01 f/cc (PCM), the work area must be re-cleaned, containment verified, and new samples collected. No re-entry until passing results are documented. Repeated failures may require TEM to identify sources.





Protect Workers and Occupants with Professional Asbestos Air Monitoring

Asbestos air monitoring isn’t a formality—it’s the safety checkpoint that protects workers during abatement and proves clearance before re-occupancy. Whether you’re navigating OSHA regulations, closing out NYC permits, or verifying tenant safety, skipping or delaying air monitoring risks fines, legal liability, and health hazards that far exceed the modest cost of certified testing.

UNYSE’s certified industrial hygienists bring three decades of field experience, NVLAP-accredited lab partnerships, and a commitment to same-day results that keep your project on schedule. We serve contractors and property owners across New York City, Long Island, and the Hudson Valley with flexible scheduling, independent oversight, and comprehensive reporting.

Get same-day asbestos air monitoring results. Call (888) 436-8338 or visit https://www.unyse.net/ to schedule your inspection today.
