XRF Lead-Based Paint Testing NYC: Complete Guide

A property manager in Williamsburg, Brooklyn, faced a deadline she couldn't miss: the NYC Department of Housing Preservation and Development (HPD) required her to complete lead inspections on 12 pre-1960 rental units and submit results to the NYC Rental Registry within 30 days. Traditional lab-based chip sampling would take 5–7 days per unit—she’d miss the deadline by weeks and face penalties up to $1,500 per unit. UNYSE’s certified inspectors completed all 12 units in a single day using portable XRF lead-based paint testing, delivering same-day reports that satisfied HPD requirements and avoided $18,000 in potential fines. According to NYC DOH data, many landlords now use XRF testing to meet Local Law 1 inspection deadlines, choosing speed and non-destructive convenience over traditional lab sampling.

XRF lead-based paint testing uses handheld X-ray fluorescence analyzers to measure lead concentration in paint instantly, without removing chips or damaging walls. Whether you’re a landlord navigating Local Law 1, a homebuyer conducting pre-purchase due diligence, or a contractor planning a renovation, XRF delivers fast, accurate results that keep your project on schedule. This guide explains how XRF technology works, when it’s required in NYC, how it compares to lab chip sampling, typical costs, and how UNYSE’s certified inspectors provide same-day reporting across all five boroughs.





What Is XRF Lead-Based Paint Testing and How Does It Work?

XRF (X-ray fluorescence) lead-based paint testing is a non-destructive analytical method that measures lead concentration in painted surfaces using portable handheld analyzers. The device emits low-energy X-rays that penetrate the paint layers and excite lead atoms, causing them to fluoresce at characteristic energy levels unique to lead. A detector inside the analyzer measures the fluorescent signal and calculates lead concentration in milligrams per square centimeter (mg/cm²). Results are displayed on-screen within seconds, allowing inspectors to test dozens of surfaces in a single visit.

XRF analyzers can detect lead in paint, plaster, varnish, and other coatings applied to wood, drywall, metal, and masonry substrates. The technology is approved by the EPA and HUD for lead-based paint inspections, risk assessments, and abatement clearance verification when used by certified inspectors with properly calibrated, EPA-recognized analyzers.

X-Ray Fluorescence Technology Explained

XRF technology relies on the principle that every element has a unique atomic structure. When X-rays strike lead atoms in paint, they knock electrons out of inner shells, creating temporary vacancies. Electrons from outer shells fall into these vacancies, releasing energy as fluorescent X-rays at wavelengths specific to lead. The analyzer’s detector measures the intensity of lead-specific fluorescence and calculates the concentration based on calibration standards.

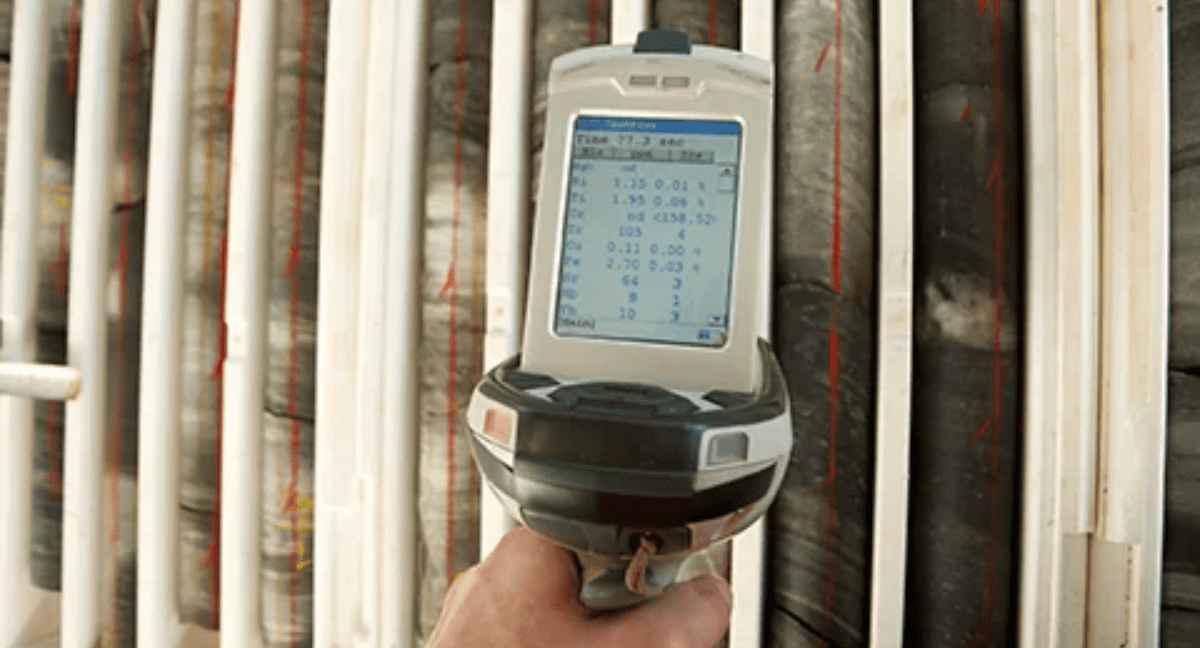

Modern portable XRF analyzers (such as the Niton XL3t, Olympus Vanta, or Bruker Tracer) are battery-powered, handheld devices weighing 3–5 pounds. Inspectors place the analyzer’s probe window against the painted surface and trigger a 1–3 second measurement. The device displays results in real time, categorizing readings as:

  • Positive: Lead concentration ≥ 1.0 mg/cm²

  • Negative: Lead concentration < 1.0 mg/cm²

  • Inconclusive: Substrate interference prevents a definitive determination


EPA regulations define lead-based paint as any paint or coating containing ≥ 1.0 mg/cm² (or ≥ 0.5% by weight). Read more: https://www.epa.gov/lead/lead-based-paint-inspection-technical-guidance





Non-Destructive Testing vs. Traditional Lab Chip Sampling

The primary advantage of XRF testing is that it’s completely non-destructive. Inspectors test painted surfaces without removing paint, drilling holes, or damaging walls. This makes XRF ideal for:

  • Occupied rental units: No patching, repainting, or tenant disruption

  • Historic properties: Preserves original finishes and architectural details

  • Pre-sale inspections: Avoids cosmetic damage that could delay closings

  • Multi-unit buildings: Rapid screening of dozens of apartments in one day


Traditional lab chip sampling requires inspectors to cut or scrape paint chips from each component (walls, doors, windows, trim), package them in labeled containers, and ship them to an EPA-recognized lab for analysis. Lab turnaround is typically 5–7 business days, and each chip sample leaves a small hole requiring patching and touch-up painting. For a 10-unit building, chip sampling can take 2–3 weeks from sample collection to final report.

XRF delivers results on-site in seconds. A certified inspector can test 10–20 components per hour, complete a full residential inspection in 1–2 hours, and provide a same-day report. However, XRF has one important limitation: positive or inconclusive results must be confirmed by lab chip sampling before abatement or legal action, per EPA and HUD protocols. HUD guidance: https://www.hud.gov/program_offices/healthy_homes/lbp/hudguidelines





NYC Lead Paint Testing Requirements: When XRF Is Needed

New York City enforces some of the nation’s strictest lead paint regulations, driven by childhood lead poisoning data showing elevated blood lead levels in pre-1960 housing. Landlords, property owners, and contractors must understand when XRF testing is legally required and when it’s optional but highly recommended.

Local Law 1 and the NYC Rental Registry

NYC Local Law 1 requires owners of residential buildings constructed before 1960—or before 1978 if a child under age 6 resides there—to conduct annual visual inspections of all rental units. If the visual inspection reveals deteriorated paint on friction or impact surfaces (doors, windows, floors), the landlord must:

  1. Repair the condition using lead-safe work practices

  2. Document the repair with photos and work orders

  3. Conduct a clearance inspection (dust wipe or visual verification)

  4. File an annual certification with HPD confirming compliance


XRF testing is not explicitly required for routine visual inspections, but it’s the fastest way to determine if deteriorated paint contains lead. If XRF confirms lead-based paint, the landlord must follow EPA RRP protocols and NYC-specific lead-safe work practices. If XRF shows no lead, repairs can proceed without RRP compliance.

NYC also requires landlords to register rental units with HPD and disclose lead paint inspection history through the NYC Rental Registry. XRF testing provides fast, documented proof of compliance. NYC DOH info: https://www.nyc.gov/site/doh/health/health-topics/lead-poisoning-prevention.page

Pre-Sale Disclosure and Real Estate Transactions

Federal law (42 U.S.C. § 4852d) requires sellers of pre-1978 residential properties to provide buyers with a lead-based paint disclosure form and any available inspection/risk assessment reports. Buyers often request XRF inspections during due diligence to assess potential hazards and renovation costs. UNYSE provides next-day scheduling and same-day reports for time-sensitive transactions.





XRF vs. Lab Chip Sampling: Speed, Cost, and Accuracy

Same-Day XRF Results vs. 5–7 Day Lab Turnaround

  • XRF: Instant readings; report same day (24 hours for large multi-unit)

  • Lab chips: 5–7 business days for results; 7–14 days total project timeline


XRF speed is invaluable for HPD deadlines, renovations, or closings. Trade-off: XRF can produce false positives due to substrate interference.

When Lab Confirmation Is Required After XRF Testing

EPA/HUD require lab confirmation of XRF positive or inconclusive readings before:

  • Abatement projects

  • Litigation/insurance/regulatory enforcement

  • Risk assessments requiring quantified lead content


For routine Local Law 1 compliance, registry submissions, and many pre-sale disclosures, XRF results are typically sufficient when the inspector and analyzer meet EPA/NYC standards. UNYSE reports include analyzer model/serial, calibration date, and inspector credentials for DOH/HPD documentation.





Q: What is XRF lead-based paint testing?

XRF testing uses a handheld analyzer to measure lead concentration in painted surfaces without removing paint. The analyzer excites lead atoms with X-rays and reads fluorescent energy to quantify lead in mg/cm², producing instant results.





How XRF Lead Testing Is Performed in NYC Properties

XRF lead testing follows strict protocols to ensure accurate, reproducible results. Certified inspectors must use EPA-recognized analyzers, follow HUD testing guidelines, and document every reading.

Portable XRF Analyzer Setup and Calibration

  • Daily calibration with NIST-traceable reference standards (e.g., 0.0, 1.0, 2.0, 4.0 mg/cm²)

  • Record date/time, analyzer serial, and pass/fail results

  • Use EPA-recognized analyzers (Niton XL3t, Olympus Vanta, Bruker Tracer)

  • Inspectors hold EPA or NYS DOH Lead Inspector/Risk Assessor certification


Testing Locations: Walls, Doors, Windows, and Trim

HUD protocols require testing all painted components/rooms. Typical NYC apartment locations:

  • Walls (each room)

  • Doors (both sides), frames, trim

  • Windows (sashes, frames, sills, troughs)

  • Baseboards/crown molding

  • Painted radiators, pipes, fixtures

  • Cabinets/built-ins


Inspectors place the probe flat to the surface for a 1–3 second reading. Results appear as positive (≥ 1.0 mg/cm²), negative (< 1.0 mg/cm²), or inconclusive. Substrate correction algorithms help compensate for metal, brick, or plaster; certain conditions may still require lab confirmation.





Understanding XRF Lead Testing Results and Reporting

mg/cm² Thresholds

  • < 1.0 mg/cm²: Negative; no special work practices required

  • ≥ 1.0 mg/cm²: Positive; EPA RRP and NYC lead-safe work practices apply

  • Inconclusive: Lab chip sampling required


UNYSE reports include:

  • Summary tables of positive/negative/inconclusive readings

  • Highest concentration detected

  • Recommended next steps (confirmation sampling, work practices, disclosure)

  • Photos, calibration records, and inspector credentials

  • Documentation aligned with HPD, DOH, and HUD standards


False Positives, Substrate Interference, and Inconclusive Results

Potential causes:

  • Metal substrates: Steel doors, aluminum frames

  • Metallic wallpaper/paint: Interfering pigments

  • Dense substrates: Thick plaster/masonry

  • Multiple paint layers: Limited penetration depth


EPA/HUD require lab chips to confirm positive/inconclusive XRF before abatement. Inconclusive results are treated as presumed positive until lab results prove otherwise.





Q: When is XRF lead testing required in NYC?

Under Local Law 1, landlords must conduct annual visual inspections in pre-1960 buildings (or pre-1978 with a child under 6). If deteriorated paint or hazards are identified, XRF is commonly used to confirm lead presence before repair or abatement. XRF is also used for rental registry compliance, pre-sale disclosures, and pre-renovation assessments.





XRF Lead Testing Costs in NYC and Turnaround Times

Typical Pricing

  • Per reading: $15–$35

  • Single-unit/apartment: $300–$600 (10–20 components)

  • Multi-unit discounts:


    • 1–3 units: $350–$600 per unit

    • 4–10 units: $250–$450 per unit

    • 11+ units: $200–$400 per unit


Extras (if needed):

  • Lab chip confirmation: $40–$75 per sample

  • Exterior testing: Additional time/travel

  • Rush reporting (large projects): +$100–$200


Request a quote: https://www.unyse.net/ or call (888) 436-8338.

Same-Day Reporting and Rush Services

  • Standard reporting within 24 hours

  • Same-day reporting for single/small multi-unit projects

  • Large projects (10+ units): 24–48 hours for compilation/QC

  • Same-day scheduling (call before 10 a.m.), evenings/weekends available

  • Digital PDF delivery within hours of completion


Service area: all five NYC boroughs plus Westchester, Long Island, and the Hudson Valley.





Q: How much does XRF lead testing cost in NYC?

Typically $15–$35 per reading; most apartments run $300–$600 depending on component count. Same-day reporting is standard, with volume discounts for multi-unit properties.





Q: Is XRF lead testing accurate?

Yes—when performed by certified inspectors using EPA-recognized, calibrated analyzers. False positives can occur due to substrate interference; EPA/HUD require lab confirmation for positive or inconclusive XRF results before abatement or legal action.





How UNYSE Delivers Certified XRF Lead Testing Across NYC

EPA-Certified XRF Analyzers and NYS DOH Compliance

All UNYSE inspections are performed by EPA-certified Lead Inspector/Risk Assessors or NYS DOH-certified Lead Inspectors using EPA-recognized analyzers (Niton XL3t, Olympus Vanta). Analyzers are calibrated daily with NIST-traceable standards and undergo annual performance verification.

Every XRF report includes:

  • Inspector name and certification number

  • Analyzer model/serial and EPA recognition

  • Daily calibration results (date/time)

  • Room-by-room readings with component descriptions

  • Photographic documentation

  • Summary of positive/negative/inconclusive results

  • Recommended next steps for compliance, disclosure, or abatement


Serving All Five Boroughs with Same-Day Availability

UNYSE provides XRF testing across Manhattan, Brooklyn, Queens, the Bronx, Staten Island, plus Westchester, Long Island, and the Hudson Valley. If XRF identifies positive or inconclusive results, we can collect lab chip samples on the same visit, coordinate expedited analysis, and deliver a comprehensive report within 3–5 business days.





Q: Does XRF testing damage walls?

No. XRF is entirely non-destructive. If lab confirmation is later required, chip samples can be taken from inconspicuous areas.





Get Same-Day XRF Lead Testing Across NYC

XRF lead-based paint testing delivers the speed, accuracy, and non-destructive convenience NYC landlords, buyers, and contractors need to meet compliance deadlines without delays or damage. Whether you’re navigating Local Law 1, submitting rental registry documentation, or conducting pre-sale due diligence, XRF provides same-day answers that keep your project moving.

UNYSE’s EPA-certified inspectors bring decades of field experience, EPA-recognized analyzers, and a commitment to same-day reporting that meets NYC’s requirements. We offer flexible scheduling, evening/weekend availability, and documentation that satisfies HPD, DOH, and HUD standards.

Get same-day XRF lead testing in NYC. Call (888) 436-8338 or visit https://www.unyse.net/ to schedule your inspection today.
